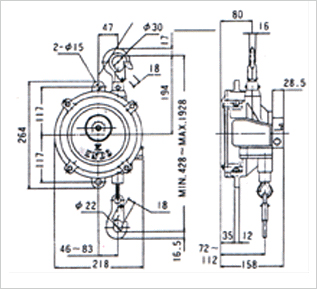

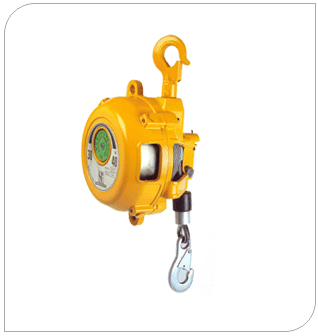

Aluminium Die Casting Series SP SB 22 - 30

MODEL NO	CAPACITY (kgs)	CABLE TRAVEL (mtrs)	DIAMETER OF CABLE (mm)	MASS (kgs)
SPSB-30	22.0-30.0	1.5	4.76	7.6

--------------------------------------------------------------------------------------------------------------------------------------------------------

MODELS	GENERAL TOOLS USED	AREA OF USE IN SHOP FLOOR	MAKE OF TOOLS NORMALLY USED
SPSB - 30	IMPACT WRENCHES SMALL PORTABLE SPOT WELDERS, RIVETERS ANGLE GRIENDERS	BODY SHOP OF CARS FABRICATION SHOPS CHASIS ASSLY OF CARS, TRUCKS, JEEPS	WADCO, IEC, NASH M/C CHICAGO PNEUMATIC RALLIWOLF, BLACK & DECKER, HITACHI.

MODEL NO.

PARTS OF SPRING BALANCER

RAW MATERIAL SPECIFICATION

DETAILED PROCESS OF MANUFACTURE

SPSB-30

SPRING CASING

WORM & WORM
GEAR

BEARINGS

TOP & BOTTOM HOOKS

SPIRAL SPRING

EDD QUALITY STEEL SHEET

20 MnCr 5 Material

6004 ZZ
Nachi / SKF

EN-8 DROP
FORGED

EN-42J, IS 4454 GRADE II SPRING STEEL

Outer Cutting, Deep Drawing, Punching,Bending, Piercing & fabrication.

Turning, Gear Hobbing, milling,Hardening Grinding.

Standard Bought Out item.

Heading, Drawing, Bending, Drop Forging, Trimining. Machining, Shot Blasting, Buffing Electro plating.

Sitting, Bending, Colling
