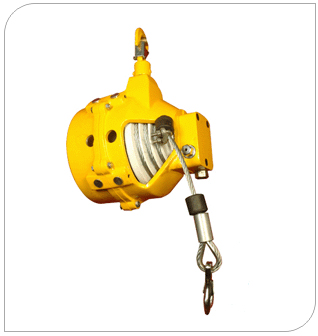

Aluminium Die Casting Series SP SB 100 - 120

MODEL NO	CAPACITY (kgs)	CABLE TRAVEL (mtrs)	DIAMETER OF CABLE (mm)	MASS (kgs)
SPSB-120	100-120	1.5	8.0	28.7

MODELS	GENERAL TOOLS USED	AREA OF USE IN SHOP FLOOR	MAKE OF TOOLS NORMALLY USED
SPSB-120	MULTI SPINDLE NUT RUNNERS PNEUMATIC RIVETERS PORTABLE SPOT, EWLDING GUNS, NUMBER PUNCHING MACHINES	ASSLY OF TRUCKS, VAN, JEEPS CHASIS ASSLY. SHOP BODY (WELD) SHOP	DESOUTTER, DAI, ICHI INTELTEK, MECHELONIC NASH, JAYAHIND, SCIAKY

MODEL NO.

PARTS OF SPRING BALANCER

RAW MATERIAL SPECIFICATION

DETAILED PROCESS OF MANUFACTURE

SPSB-120

SPIRAL SPRING
WORM, WORM
GEAR

TOP & BOTTOM
HOOKS
CENTRE SHAFT
BEARINGS.
WIRE ROPE

EN-42J IS4454 GR II
20 Mn Cr 5 Material

EN-8-DROP
FORGED
EN-24
6205, 6206
USHA MARTIN MAKE

Sitting, Bending, Coiling.
Turning,Hobbing, Milling, Hardening, Grinding.

Heading, Drawing, Bending, Drop Forging, Trimming.
Turning, Milling, Hardening, Grinding.

BOUGHT OUT
