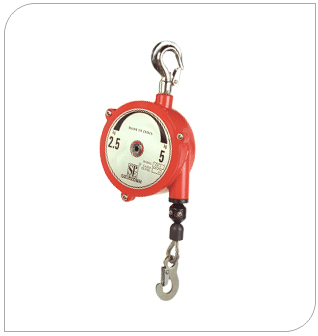

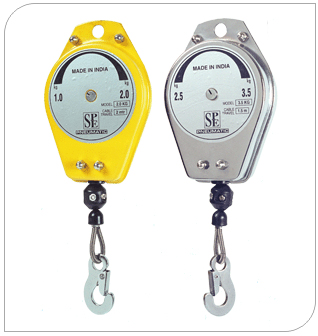

Sheet Metal Spring Balancer
|
|
The range of spring balancer comprises of a sheet metal boby housing a spring wound on a shaft with a safe, protective, tensioning system.
FEATURES
* Quick Installation
* Heavy duty spring
* Easy tension adjustments-no tools required
* Durable nylon covered steel rope
* Convenient snap type tool clip
* In-line alignment of hanger & tool Hook.
* Ergonomic design user friendly
Type I : Sleek Body Sheet Metal Spring Balancer |
|
|
|
MODEL NO |
CAPACITY
(kgs) |
CABLE TRAVEL
(mtrs) |
DIAMETER OF CABLE
(mm) |
MASS
(kgs) |
|
SPSB-1.5 |
0.5 to 1.5 |
1.5 |
2.5 |
0.60 |
|
SPSB-2.0 |
1.0 to 2.0 |
1.5 |
2.5 |
0.65 |
|
SPSB-2.0 (2MTR W.L) |
1.0 to 2.0 |
2.0 |
2.5 |
1.00 |
|
SPSB-2.5 |
1.5 to 2.5 |
1.5 |
2.5 |
1.00 |
|
SPSB-3.5 |
2.5 to 3.5 |
1.5 |
2.5 |
1.00 |
|
| |
| Type II : Closed Body Sheet Metal Spring Balancer |
| |
|
MODEL NO |
CAPACITY
(kgs) |
CABLE TRAVEL
(mtrs) |
DIAMETER OF CABLE
(mm) |
MASS
(kgs) |
|
SPSB-3.0 |
1.0 to 3.0 |
1.5 |
2.8 |
|
|
SPSB-3.0 (2.5 MTR W.L) |
1.0 to 3.0 |
2.5 |
2.8 |
- |
|
SPSB-3.5 (2.5 MTR W.L) |
2.5 to 3.5 |
3.0 |
2.5 pvc nylon coated |
|
|
SPSB-5.0 |
2.5 to 5.0 |
1.5 |
2.8 |
|
|
SPSB-5.0 (2.5 MTR W.L) |
2.5 to 5.0 |
1.5 |
2.8 |
|
|
| |
| |
