Auto Rewind Hose Reel Series 4000

This series 4000 Hose reel are mainly used for air,oil, grease,water application.Reels are all steel construction and compact for application with critical space requirements.These reels have auto self winding ratcheting mechanism such that after the completion of work the hose can get rewound by slight pull of hose.
Auto Rewind Hose Reel Series 4000

  APPLICATIONS & MARKETS

*  Automotive Service Centers
*  Work shop
*  Industrial
*  Service Trucks
*  Pneumatic Tools
*  Trasmisssion Shops
*  Woodworking
*  Feet Maintenance Facilities
*  Tire Stores
*  Farm & Ranch
*  Aircraft Maintenance

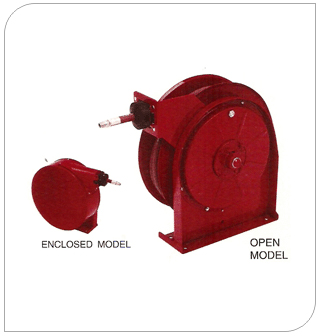

*  Series 4000 E reels are the same as 4000 reels. Except E series     reels.
*  Fully enclose to order the model number suffix letter. O to E     Example SP 4380 OHP becomes SP 4380 EHP.

MODELS WITH HOSE     HOSE CAPACITY MODEL WITHOUT HOSE
MODEL           PRESSURE    I.D   O.D.        LENGTH  MODEL        PRESSURE
psi /  bar in   /  mm  mm ft / mtr   psi  /bar
LOW PRESSURE HOSE REELS               Maximum Temperature 150*F(65*C) - Reel 3/8" BSP &  NPT (Female)
SP4310 OLP    275 19 1/4"     6 13.0  65   20 SP4305 OLP    500     35
SP4320 OLP 275 19 1/4"     6 13.0 82 25 SP4315 OLP 500 35
SP4330 OLP 275 19 3/8"    10 17 65 20 SP4325 OLP 500 35
SP4340 OLP 275 19 3/8"    10 17 82 25 SP4335 OLP 500 35
SP4350 OLP 275 19 1/2'     12 20.0 50 15 SP4345 OLP 500 35
SP4360 OLP 275 19 1/2"    12 20.0 65 20 SP4355 OLP 500 35
Low pressure reel furnished standard with pvc hose
MEDIUM PRESSURE OIL REES   Maximum Temperature 212*F(100*C) - Reel 3/8" OR 1/2" BSP &  NPT (Femal)
SP4370 OMP 400 28 1/4"     6 13.0 26 10 SP4365 OMP 1000 70
SP4380 OMP 400 28 1/4"     6 13.0 40 15 SP4375 OMP 1000 70
SP4390 OMP 400 28 3/8"    10 17.0 26 10 SP4385 OMP 1000 70
SP4400 OMP 400 28 3/8"    10 17.0 40 15 SP4395 OMP 1000 70
SP4410 OMP 400 28 1/2"    12 20.0 20 10 SP4405 OMP 1000 70
SP4420 OMP 400 28 1/2"    12 20.0 33 12 SP4415 OMP 1000 70
Medium pressure reels furnished with SAE 100 R6 AT one synthetic textile braid.
HIGH PRESSURE GREASE REELS   Maximum Temperature 212*F(100*C) - Reel 3/8" OR 1/2" BSP &  NPT (Femal)
SP4430 OHP 5800 400 1/4"     6 13.0 26 10 SP4425 OHP 7250 500
SP4440 OHP 5800 400 1/4"     6 13.0 40 15 SP4435 OHP 7250 500
SP4450 OHP 4750 355 3/8"     10 17.0 26 10 SP4445 OHP 7250 500
SP4460 OHP 4750 355 3/8"    10 17.0 40 15 SP4455 OHP 7250 500
High pressure reels furnished standard with SAE 100 R2 AT Two braid steel wire hose, suitable for grease applications only.
