Pneumatic / Rotary Plug

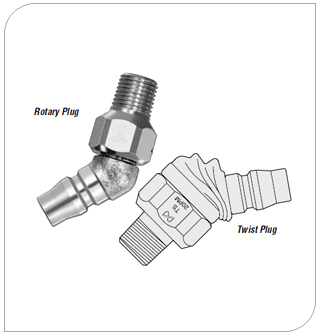

*   Rotary plug for hose connection to pneumatic tools and pneumatic devices.

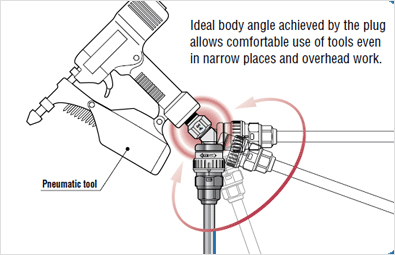

*   Fits to the tool at 45* angle and eliminates annoying transfer of house load.
*   In pursuit of workability, we achieved a compact design by simplifying the body structure. Now lighter and smaller
     than previous models.

*   New design in dust-proofed for greater durability.
*   For tackers, nailers, impact wrenches and other pneumatic tools.

Pneumatic / Rotary Plug
Specifications

Body material Steel (nickel-plated)
Size 1/4”, 3/8”
Working pressure MPa{kgf/cm2} 1.5{15}/1.0{10} (only RL-02MP.PFF type)
Pressure resistance MPa {kgf/cm2} 2.0{20}/1.5{15} (only RL-02MP.PFF type)
Packing material
Working temperature range
Packing Material SP Symbol Working temp  Remarks
NBR SP -5*C+60*C Standard material



Max. Tightening torque* N.m {kgf.cm}
Size 1/4" 3/8'
Torque 15 {153} 25 {255}

*Recommended value


 For female Thread connection (PM)

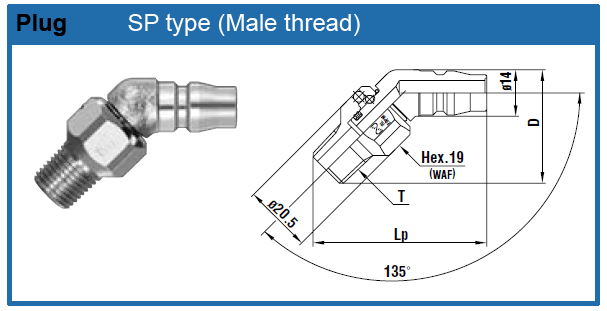

Product code Application Mass (g) Dimensions (mm)
Lp D T
SP - 20PM Rc1/4(PT1/4) 52 52.1 34.1 R1/4 (PT1/4)
SP - 30PM Rc3/8(PT3/8) 73 50.8 32.8 R3/8 (PT3/8)

For male Thread connection (Product code SP - 20PFF)
