Motor & Manual Driven Hose Reel Series 9000

S. P. ENGINEERS Series 9000 reels are deasigned for heavy duty application requriring long lengths of hose and will adapt to in the field or in the plant uses. Contemporary engineering and manufactring techniques assure trouble free performance and long product life.
S.P. Reels are shipped completely assembled,ready to install.Installation instrution are supplied with each reel. S.P. Reels can also be ordered less swivel to be used as storage reels for hose,cord,cable,rope,extension cords and numerous other applications.

Motor & Manual Driven Hose Ree Series 9000
STANDARD FEATURES INCLUDE :

*   Swivels available with VITON "O"ring seals. Viton are standard.
*   Unitized all bolted construction.Reel,frame,spool and drum are fabricated of      heavy gauge steel.
*   Temperature operating rangea-20* F (-29* C) to 210* F (99* C).
*   Manual driven reels can be converted to electric,hydraulic or air driven with      motor mounting or either end of reel.
*   Chain &sprocket partiality shrouded for extra safety.
*   Durable baked on powder coat red finish standard.

Motor & Manual Driven Hose Reel Series 9000
MODEL NO. HOSE I.D. HOSE O.D. CAPACITY PRESSURE A B C D
  in mm mm ft mtr psi bar in mm in mm in mm in mm

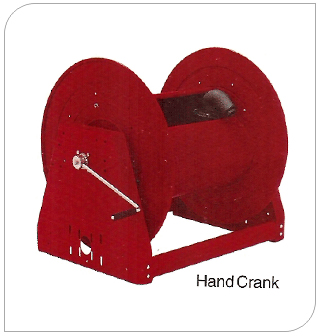

HAND CRANK REELS
SP HC 9110 L 1" 25.4 38.5 80' 24 600 42 25" 63.5 153/8" 39.7 15" 38.1 N/A
SP HC 9112  L 1 25.4 38.5 110 34 600 42 28 71.2 153/8" 39.7 15 38.1 N/A
SP HC 9210  L 1 1/2" 38.1 50.8 75 23 600 42 28 71.2 153/8" 39.7 15 38.1 N/A
SP HC 9212  L 1 1/2" 38.1 50.8 125 38 600 42 28 71.2 153/8" 39.7 24 61 N/A
SP HC 9214 L 1 1/2" 38.1 50.8 50 15 600 42 25 63.5 153/8" 39.7 15 38.1 N/A
ELECTRIAL MOTOR DRIVEN REELS
SP EM 9210 L 12D  1 1/2" 38.1 50.8 75' 23 600 42 28" 71.2 153/8" 39.7 15" 38.1 271/2" 69.4
SP EM 9212 L 12DX 1 1/2" 38.1 50.8 50 15 600 42 25 63.5 153/8" 39.7 15 38.1 291/2" 75.9
SP EM 9214 L 10AX 1 1/2" 38.1 50.8 50 15 600 42 25 63.5 153/8" 39.7 15 38.1 291/2" 75.9
SP EM 9210 M 24 DX 1 25.4 38.5 110 34 1000 102 28 71.2 153/8" 39.7 15 38.1 291/2" 75.9
AIR MOTOR DRIVEN REELS
SP A 9110 L 6A 1" 25.4 38.5 190' 58 600 42 28" 71.2 103/4" 27.3 15" 28.1 281/2" 71.4
SP A 9112 L 6A 1 25.4 38.5 110 34 600 42 28 71.2 155/8" 39.7 15 38.1 281/2" 71.4
SP A 9210 L 6A 1 1/2" 38.1 50.8 50 15 600 42 25 63.5 155/8" 39.7 15 38.1 281/2" 71.4
HYDRAULIC MOTOR DRIVEN REELS
SP H 9110 H 1" 25.4 38.5 125' 38 3000 207 25" 63.5 155/8" 39.7 24" 60.7 361/2" 92.5
SP H 9210  L 1 1/2 38.1 50.8 75 23 600 207 28 71.2 155/8" 39.7 15 38.1 271/2" 69.7

Model Number Significance
Drive Type Swivel Size Width of Spool Power Source
A-Air Preumatic Moter Drive (A) 0-No Swivel 15" (381mm) with of spool 12-12 volt DC
H-Hand Crank driect drive (HC) 1-1/2'" (25mm) I.D 24" (610mm) with of spool 24-24 volt DC
E-Electric moter driven, AC or DC (EM) 2-1 1/4"' (32mm) I.D See "C" Dimension 10-115 volt DC
H-Hydroulic moter driven (HM) 3-1/4" (12mm) Dual online drawing 6A-6AM (Air motor)

Series 9000 Flange Diameter
1-25" (63.5 cm)
2-28" (71.12 cm)
spool spacer diameter
1-10 3/4 " (27,31 cm)
1-15 5/8 " (39,69 cm)
Pressure type
L-600 PSI (43 bar)
M-1000 PSI (71 bar)
H-3000 PSI (207 bar)
Electric Current Type
A-AC
D-DC
Although S.P.Engineer offers over 400 different models of the above option are not available. Check office for price and availability.
